Generate a Melatonin Profile Plot

Source: R/plot_profile.R
plot_profile.Rd

This function creates a plot of melatonin concentration over time with various optional overlays, including DLMO fit lines, DLMO time stamp, threshold lines, melatonin profile segment highlights, best-fit parallelogram, and ROI residual heatmaps.

Usage

plot_profile(
  profile_data,
  show_threshold = TRUE,
  threshold = 2.3,
  show_segments = TRUE,
  show_parallelogram = FALSE,
  pll_result = NULL,
  show_roi = FALSE,
  roi_line_only = TRUE,
  roi = NULL,
  show_dlmoIP = TRUE,
  dlmo = NULL,
  dlmoFit = NULL,
  show_fit = FALSE,
  show_roi_heatmap = FALSE,
  plot_coarse = FALSE,
  mode = c("analyzed", "raw")
)

Arguments

profile_data

A dataframe containing melatonin concentration data with datetime values.

show_threshold

Logical. If TRUE, adds a horizontal threshold line at threshold value.

threshold

Numeric. The threshold value for melatonin concentration (default 2.3 pg/mL).

show_segments

Logical. If TRUE, highlights base, intermediate, and ascending segments.

show_parallelogram

Logical. If TRUE, overlays a parallelogram on the plot.

pll_result

List containing parallelogram parameters, including:

  • pll_datetime_0: POSIXct timestamp for the left boundary.

  • pll_datetime_1: POSIXct timestamp for the right boundary.

  • pll_slope: Numeric. The slope of the parallelogram edges.

  • corners: List of corner coordinates (ll, lr, ur, ul).

show_roi

Logical. If TRUE, overlays the region of interest (ROI).

roi_line_only

Logical. If TRUE, only plots the ROI boundaries, not the shaded area.

roi

List containing ROI boundaries (x_start, x_end, y_min, y_max).

show_dlmoIP

Logical. If TRUE, marks the DLMO inflection point.

dlmoFit

List containing DLMO fit results, including:

  • inflection_point: A list with x (decimal hours) and y (melatonin level).

  • base_params: Parameters of the base segment fit.

  • ascending_params: Parameters of the ascending segment fit.

  • grid: search grid for inflection point.

  • res: Residuals from grid search.

show_fit

Logical. If TRUE, overlays DLMO fit lines.

show_roi_heatmap

Logical. If TRUE, adds a heatmap for ROI residuals.

mode

Character. Plot mode, either "analyzed" (default) for the diagnostic DLMO plot or "raw" for a raw time-series plot before segmentation and fitting. In "raw" mode, analysis overlays are disabled. profile_data must already be a data frame; if starting from a CSV file, read it first with readr::read_delim(file_path, delim = ";") or use plot_raw_profile() directly.

Value

A ggplot2 object with the melatonin profile and optional overlays.

Details

  • This function plots melatonin concentration over time with flexible overlays.

  • The DLMO fit is visualized as a piecewise-linear or parabolic fit.

  • The inflection point is highlighted using a pink marker.

  • A parallelogram can be overlaid to show truncated ascending segments.

  • The ROI heatmap provides a residuals-based visualization of the inflection search.

  • Use mode = "raw" to plot an unsegmented profile before running calculate_dlmo(). This is useful for checking threshold choice and identifying possible early above-threshold excursions.

See also

plot_raw_profile() for a convenience wrapper that accepts either a data frame or a CSV file path.

Examples

filename <- system.file("extdata/sample_melatonin_profile.csv", package = "dlmoR")
raw_data <- readr::read_delim(filename, delim = ";", show_col_types = FALSE)

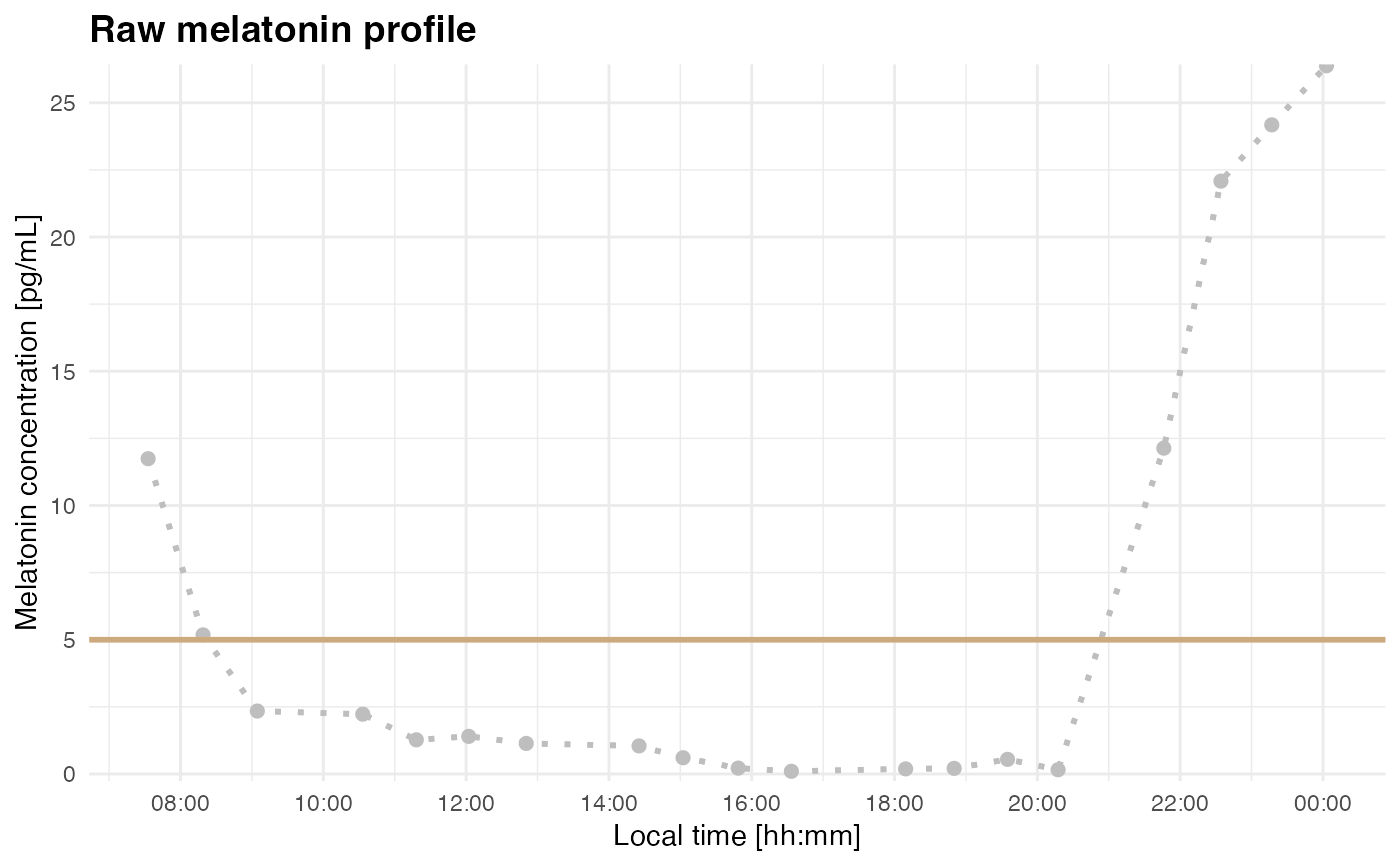

plot_profile(raw_data, threshold = 5, mode = "raw")


dlmo_result <- calculate_dlmo(file_path = filename, threshold = 5, fine_flag = FALSE)
#> Loading data from file: /private/var/folders/jc/0t013ckx36db6z5ztm52h3vw0000gn/T/RtmpQ4mYk1/temp_libpath84c12765bdc9/dlmoR/extdata/sample_melatonin_profile.csv
#> Creating 'time' column from 'datetime'.
#> Warning: Warning: Descents across threshold found in base segment at the following timestamps:
#> 2024-04-17 08:18:57
#> Warning: Warning: Large slope differences found in base segment at the following timestamps:
#> 2024-04-17 08:18:57, 2024-04-17 09:04:33
dlmo_result$dlmoplotcoarse
#> Warning: font metrics unknown for character 0x0a in encoding latin1
#> Warning: font metrics unknown for character 0x0a in encoding latin1
#> Warning: font metrics unknown for character 0x0a in encoding latin1
#> Warning: font metrics unknown for character 0x0a in encoding latin1


plot_raw_profile(file_path = filename, threshold = 5)
#> Loading data from file: /private/var/folders/jc/0t013ckx36db6z5ztm52h3vw0000gn/T/RtmpQ4mYk1/temp_libpath84c12765bdc9/dlmoR/extdata/sample_melatonin_profile.csv
#> Creating 'time' column from 'datetime'.
