Tutorial on analysis pipelines for visual experience datasets
Author
Johannes Zauner, Aaron Nicholls, Lisa Ostrin, and Manuel Spitschan
Last modified:
July 22, 2025
Warning
Please note that this supplement is not in its final styling form, as it necessarily has to be formatted as a notebook to enable commenting. Current issues include:
Cross-references not working (e.g. Figure labeling and referencing figures)
Unnecessary indentation of code and code output
These issues will be resolved when all comments have been gathered and implemented
Abstract
This supplementary document provides a detailed, step-by-step tutorial on importing and preprocessing raw data from two wearable devices: Clouclip and VEET. We describe the structure of the raw datasets recorded by each device and explain how to parse these data, specify time zones, handle special sentinel values, clean missing observations, regularize timestamps to fixed intervals, and aggregate data as needed. All original R code from the main tutorial is preserved here for transparency, with additional guidance intended for a broad research audience. We demonstrate how to detect gaps and irregular sampling, convert implicit missing periods into explicit missing values, and address device-specific quirks such as the Clouclip’s use of sentinel codes for “sleep mode” and “out of range” readings. Special procedures for processing the VEET’s rich spectral data (e.g. normalizing sensor counts and reconstructing full spectra from multiple sensor channels) are also outlined. Finally, we show how to save the cleaned datasets from both devices into a single R data file for downstream analysis. This comprehensive walkthrough is designed to ensure reproducibility and to assist researchers in understanding and adapting the data pipeline for their own visual experience datasets.
Introduction
Wearable sensors like the Clouclip and the Visual Environment Evaluation Tool (VEET) produce high-dimensional time-series data on viewing distance and light exposure. Proper handling of these raw data is essential before any analysis of visual experience metrics. In the main tutorial, we introduced an analysis pipeline using the open-source R package LightLogR (Zauner, Hartmeyer, and Spitschan 2025) to calculate various distance and light exposure metrics. Here, we present a full account of the data import and preparation steps as a supplement to the methods, with an emphasis on clarity for researchers who may be less familiar with data processing in R.
We use example datasets from a Clouclip device (Wen et al. 2021, 2020) and from a VEET device (Sah, Narra, and Ostrin 2025) (both provided in the accompanying repository). The Clouclip is a glasses-mounted sensor that records working distance (distance from eyes to object, in cm) and ambient illuminance (in lux) at 5-second intervals. The VEET is a head-mounted multi-modal sensor that logs ambient light and spectral information (along with other data like motion and distance via a depth sensor) - in this exemplary case at 2-second intervals. A single week of continuous data illustrates the contrast in complexity: approximately 1.6 MB for the Clouclip’s simple two-column output versus up to 270 MB for the VEET’s multi-channel output (due to its higher sampling rate and richer sensor modalities).
In the following sections, we detail how these raw data are structured and how to import and preprocess them using LightLogR. We cover device-specific considerations such as file format quirks and sensor range limitations, as well as general best practices like handling missing timestamps and normalizing sensor readings. All code blocks can be executed in R (with the required packages loaded) to reproduce the cleaning steps. The end result will be clean, regularized datasets (dataCC for Clouclip, dataVEET for VEET light data, and dataVEET2 for VEET spectral data) ready for calculating visual experience metrics. We conclude by saving these cleaned datasets into a single file for convenient reuse.
Clouclip Data: Raw Structure and Import
The Clouclip device exports its data as a text file (not a true Excel file despite sometimes using an .xls extension), which is actually tab-separated values. Each record corresponds to one timestamped observation (nominally every 5 seconds) and includes two measured variables: distance and illuminance. In the sample dataset (Sample_Clouclip.csv provided), the columns are:
Date – the date and time of the observation (in the device’s local time, here one week in 2021).
Dis – the viewing distance in centimeters.
Lux – the ambient illuminance in lux.
For example, a raw data line might look like:
2021-07-01 08:00:00 45 320
indicating that at 2021-07-01 08:00:00 local time, the device recorded a working distance of 45 cm and illuminance of 320 lx. The Clouclip uses special sentinel values1 in these measurement columns to denote certain device states. Specifically, a distance (Dis) value of 204 is a code meaning the object is out of the sensor’s range, and a value of -1 in either Dis or Lux indicates the device was in sleep mode (not actively recording). During normal operation, distance measurements are limited by the device’s range, and illuminance readings are positive lux values. Any sentinel codes in the raw file need to be handled appropriately, as described below.
We will use LightLogR’s built-in import function for Clouclip, which automatically reads the file, parses the timestamps, and converts sentinel codes into a separate status annotation. To begin, we load the necessary libraries and import the raw Clouclip dataset:
In [1]:
# Load required packageslibrary(tidyverse)
── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr 1.1.4 ✔ readr 2.1.5
✔ forcats 1.0.0 ✔ stringr 1.5.1
✔ ggplot2 3.5.2 ✔ tibble 3.3.0
✔ lubridate 1.9.4 ✔ tidyr 1.3.1
✔ purrr 1.0.4
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag() masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
library(LightLogR)library(gt)library(downlit) #not used, but important for code-linking feature
In [2]:
# Define file path and time zonepath <-"data/Sample_Clouclip.csv"tz <-"US/Central"# Time zone in which device was recording (e.g., US Central Time)# Import Clouclip datadataCC <- import$Clouclip(path, tz = tz, manual.id ="Clouclip")
Successfully read in 58'081 observations across 1 Ids from 1 Clouclip-file(s).
Timezone set is US/Central.
The system timezone is Europe/Berlin. Please correct if necessary!
First Observation: 2021-02-06 17:12:47
Last Observation: 2021-02-14 17:12:36
Timespan: 8 days
Observation intervals:
Id interval.time n pct
1 Clouclip 5s 54572 93.9601%
2 Clouclip 17s 12 0.0207%
3 Clouclip 18s 14 0.0241%
4 Clouclip 120s (~2 minutes) 3479 5.9900%
5 Clouclip 128s (~2.13 minutes) 1 0.0017%
6 Clouclip 132s (~2.2 minutes) 1 0.0017%
7 Clouclip 133s (~2.22 minutes) 1 0.0017%

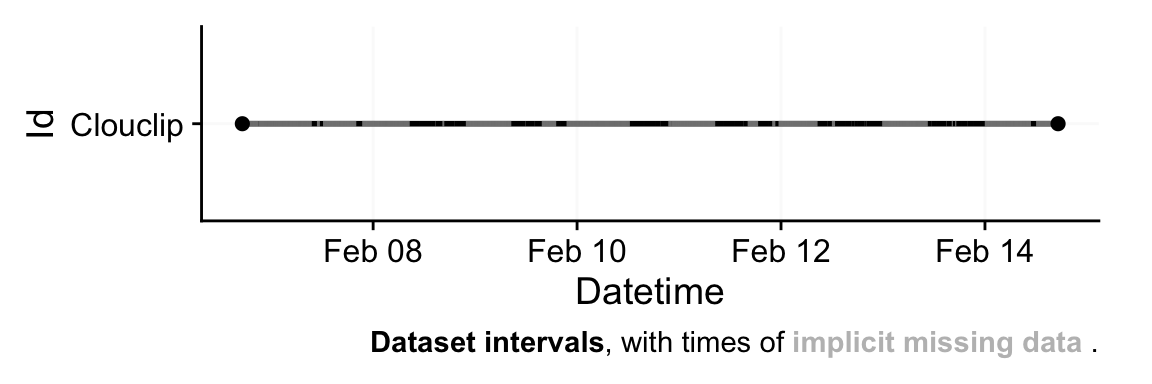

Overview plot of imported Clouclip data
In this code, import$Clouclip() reads the tab-delimited file and returns a tibble2 (saved in the variable dataCC) containing the data. We specify tz = "US/Central" because the device’s clock was set to U.S. Central time; this ensures that the Datetimevalues are properly interpreted with the correct time zone. The argument manual.id = "Clouclip" simply tags the dataset with an identifier (useful if combining data from multiple devices).
During import, LightLogR automatically handles the Clouclip’s sentinel codes. The Date column from the raw file is parsed into a POSIX date-time (Datetime) with the specified time zone. The Lux and Dis columns are read as numeric, but any occurrences of -1 or 204 are treated specially: these are replaced with NA (missing values) in the numeric columns, and corresponding status columns Lux_status and Dis_status are created to indicate the reason for those NA values. For example, if a Dis value of 204 was encountered, that row’s Dis will be set to NA and Dis_status will contain "out_of_range"; if Lux or Dis was -1, the status is "sleep_mode". We will set all other readings to "operational" (meaning the device was functioning normally at that time) for visualisation purposes.
After import, it is good practice to get an overview of the data. The import function by default prints a brief summary (and generates an overview plot of the timeline) showing the number of observations, the time span, and any irregularities or large gaps. In our case, the Clouclip summary indicates the data spans one week and reveals that there are irregular intervals in the timestamps. This means some observations do not occur exactly every 5 seconds as expected. We can programmatically check for irregular timing:
In [3]:
# Check if data are on a perfectly regular 5-second scheduledataCC |>has_irregulars()
[1] TRUE
If the result is TRUE, it confirms that the time sequence has deviations from the 5-second interval. Indeed, our example dataset has many small timing irregularities and gaps (periods with no data). Understanding the pattern of these missing or irregular readings is important. We can visualize them using a gap plot:
In [4]:
# Plot gaps and irregular timestamps for Clouclip datay.label <-"Distance (cm)"dataCC |>gg_gaps(Dis, include.implicit.gaps =FALSE, # only show recorded gaps, not every missing pointshow.irregulars =TRUE, # highlight irregular timingy.axis.label = y.label,group.by.days =TRUE ) +labs(title =NULL)
Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_line()`).
Warning: Removed 5476 rows containing missing values or values outside the scale range
(`geom_point()`).

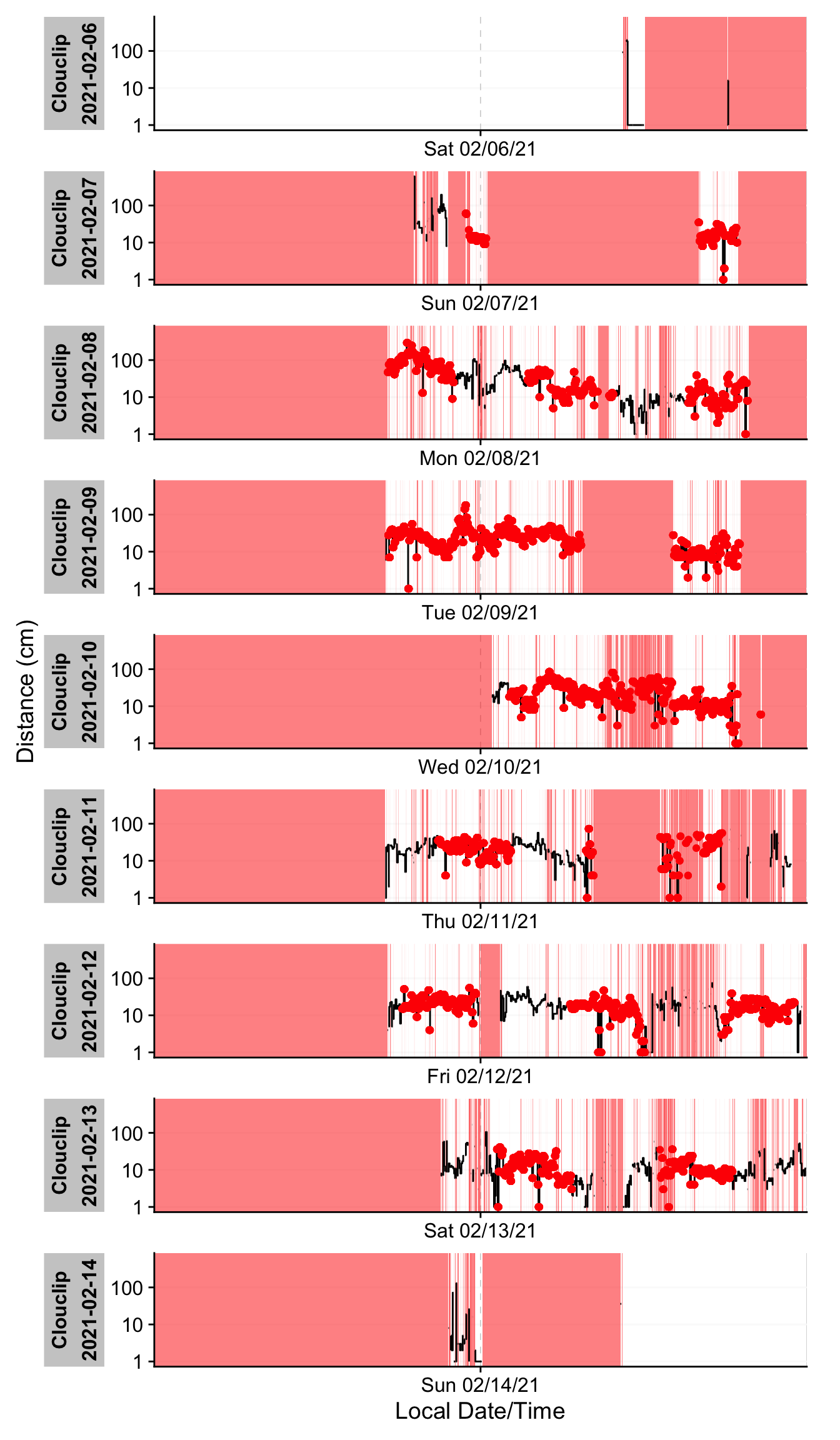

Visualization of gaps and irregular data. Black traces show available data. Red shaded areas show times of missing data. Red dots show instances where observations occur off the regular interval from start to finish, i.e., irregular data.
In (fig-irregular?), time periods where data are missing appear as red-shaded areas, and any off-schedule observation times are marked with red dots. The Clouclip example shows extensive gaps (red blocks) on certain days and irregular timing on all days except the first and last. These irregular timestamps likely arise from the device’s logging process (e.g. slight clock drift or buffering when the device was turned on/off). Such issues must be addressed before further analysis.
When faced with irregular or gapped data, LightLogR recommends a few strategies:
Remove leading/trailing segments that cause irregularity. For example, if only the first day is regular and subsequent days drift, one might exclude the problematic portion using date filters (see filter_Date() / filter_Datetime() in LightLogR).
Round timestamps to the nearest regular interval. This can snap slightly off-schedule times back to the 5-second grid (using cut_Datetime() with a 5-second interval), provided the deviations are small and this rounding won’t create duplicate timestamps.
Aggregate to a coarser time interval. For instance, grouping data into 1-minute bins with aggregate_Datetime() can mask irregularities at finer scales, at the cost of some temporal resolution.
In this case, the deviations from the 5-second schedule are relatively minor. We choose to round the timestamps to the nearest 5 seconds to enforce a uniform sampling grid, which simplifies downstream gap handling. We further add a separate date column for convenience:
In [5]:
# Regularize timestamps by rounding to nearest 5-second intervaldataCC <- dataCC |>cut_Datetime("5 secs", New.colname = Datetime) |># round times to 5-second binsadd_Date_col(group.by =TRUE) # add a Date column for grouping by day
After this operation, all Datetime entries in dataCC align perfectly on 5-second boundaries (e.g. 08:00:00, 08:00:05, 08:00:10, etc.). We can verify that no irregular intervals remain by re-running has_irregulars() (it now returns FALSE). Next, we want to quantify the missing data. LightLogR distinguishes between explicit missing values (actual NAs in the data, possibly from sentinel replacements or gaps we have filled in) and implicit missing intervals (time points where the device should have a reading but none was recorded, and we have not yet filled them in). Initially, many gaps are still implicit (between the first and last timestamp of each day). We can generate a gap summary table:
In [6]:
In [7]:
# Summarize observed vs missing data by day for distancedataCC |>gap_table(Dis, Variable.label ="Distance (cm)") |>cols_hide(contains("_n")) # hide absolute counts for brevity in output
Summary of missing and observed data for the Clouclip device
Summary of available and missing data
Variable: Distance (cm)
Data
Missing
Regular
Irregular
Range
Interval
Gaps
Implicit
Explicit
Time
%
n1,2
Time
Time
N
ø
Time
%
Time
%
Time
%
Overall
2d 14h 43m 10s
29.0%3
0
1w 2d
5
2,690
1h 35m 57s
6d 9h 16m 50s
71.0%3
5d 15h 19m 55s
62.7%3
17h 56m 55s
8.3%3
Clouclip - 2021-02-06
43m 30s
3.0%
0
1d
5s
26
53m 43s
23h 16m 30s
97.0%
22h 53m 20s
95.4%
23m 10s
1.6%
Clouclip - 2021-02-07
2h 45m
11.5%
0
1d
5s
139
9m 10s
21h 15m
88.5%
19h 42m 35s
82.1%
1h 32m 25s
6.4%
Clouclip - 2021-02-08
11h 13m 55s
46.8%
0
1d
5s
443
1m 44s
12h 46m 5s
53.2%
10h 47m 50s
45.0%
1h 58m 15s
8.2%
Clouclip - 2021-02-09
8h 46m 25s
36.6%
0
1d
5s
278
3m 17s
15h 13m 35s
63.4%
13h 50m
57.6%
1h 23m 35s
5.8%
Clouclip - 2021-02-10
7h 1m 30s
29.3%
0
1d
5s
367
2m 47s
16h 58m 30s
70.7%
14h 18m 40s
59.6%
2h 39m 50s
11.1%
Clouclip - 2021-02-11
8h 31m 55s
35.5%
0
1d
5s
423
2m 12s
15h 28m 5s
64.5%
11h 43m 30s
48.9%
3h 44m 35s
15.6%
Clouclip - 2021-02-12
12h 17m 55s
51.2%
0
1d
5s
417
1m 41s
11h 42m 5s
48.8%
9h 17m 45s
38.7%
2h 24m 20s
10.0%
Clouclip - 2021-02-13
10h 32m 15s
43.9%
0
1d
5s
527
1m 32s
13h 27m 45s
56.1%
10h 42m 10s
44.6%
2h 45m 35s
11.5%
Clouclip - 2021-02-14
50m 45s
3.5%
0
1d
5s
70
19m 51s
23h 9m 15s
96.5%
22h 4m 5s
92.0%
1h 5m 10s
4.5%
1 If n > 0: it is possible that the other summary statistics are affected, as they are calculated based on the most prominent interval.
2 Number of (missing or actual) observations
3 Based on times, not necessarily number of observations
This summary ((tbl-gaps?)) breaks down, for each day, how much data is present vs. missing. It reports the total duration of recorded data and the duration of gaps. After rounding the times, there are no irregular timestamp issues, but we see substantial implicit gaps — periods where the device was not recording (e.g., overnight when the device was likely not worn or was in sleep mode). Notably, the first and last days of the week have very little data (less than 1 hour each), since they probably represent partial recording days (the device was put on and removed on those days).
To prepare the dataset for analysis, we will convert all those implicit gaps into explicit missing entries, and remove days that are mostly incomplete. Converting implicit gaps means inserting rows with NA for each missing 5-second slot, so that the time series becomes continuous and explicit about missingness. We use gap_handler() for this, and then drop the nearly-empty days:
In [8]:
# Convert implicit gaps to explicit NA gaps, and drop days with <1 hour of datadataCC <- dataCC |># First ensure that status columns have an "operational" tag for non-missing periods:mutate(across(c(Lux_status, Dis_status), ~replace_na(.x, "operational"))) |># Fill in all implicit gaps with explicit NA rows (for full days range):gap_handler(full.days =TRUE) |># Remove any day that has less than 1 hour of recorded dataremove_partial_data(Dis, threshold.missing ="23 hours")
After these steps, dataCC contains continuous 5-second timestamps for each day that remains. We chose a threshold of “23 hours” missing to remove days with <1 hour of data, which in this dataset removes the first and last (partial) days. The cleaned Clouclip data now covers six full days with bouts of continuous wear.
It is often helpful to double-check how the sentinel values and missing data are distributed over time. We can visualize the distance time-series with status annotations and day/night periods:
In [9]:
#setting coordinates for Houston, Texascoordinates <-c(29.75, -95.36)# visualize observationsdataCC |>fill(c(Lux_status, Dis_status), .direction ="downup") |>gg_day(y.axis = Dis, geom ="line", y.axis.label = y.label) |>#create a basic plotgg_state(Dis_status, aes_fill = Dis_status) |>#add the status timesgg_photoperiod(coordinates, alpha =0.1, col ="red") +#add the photoperiod (day/night)theme(legend.position ="bottom")
Warning: Removed 6889 rows containing missing values or values outside the scale range
(`geom_line()`).

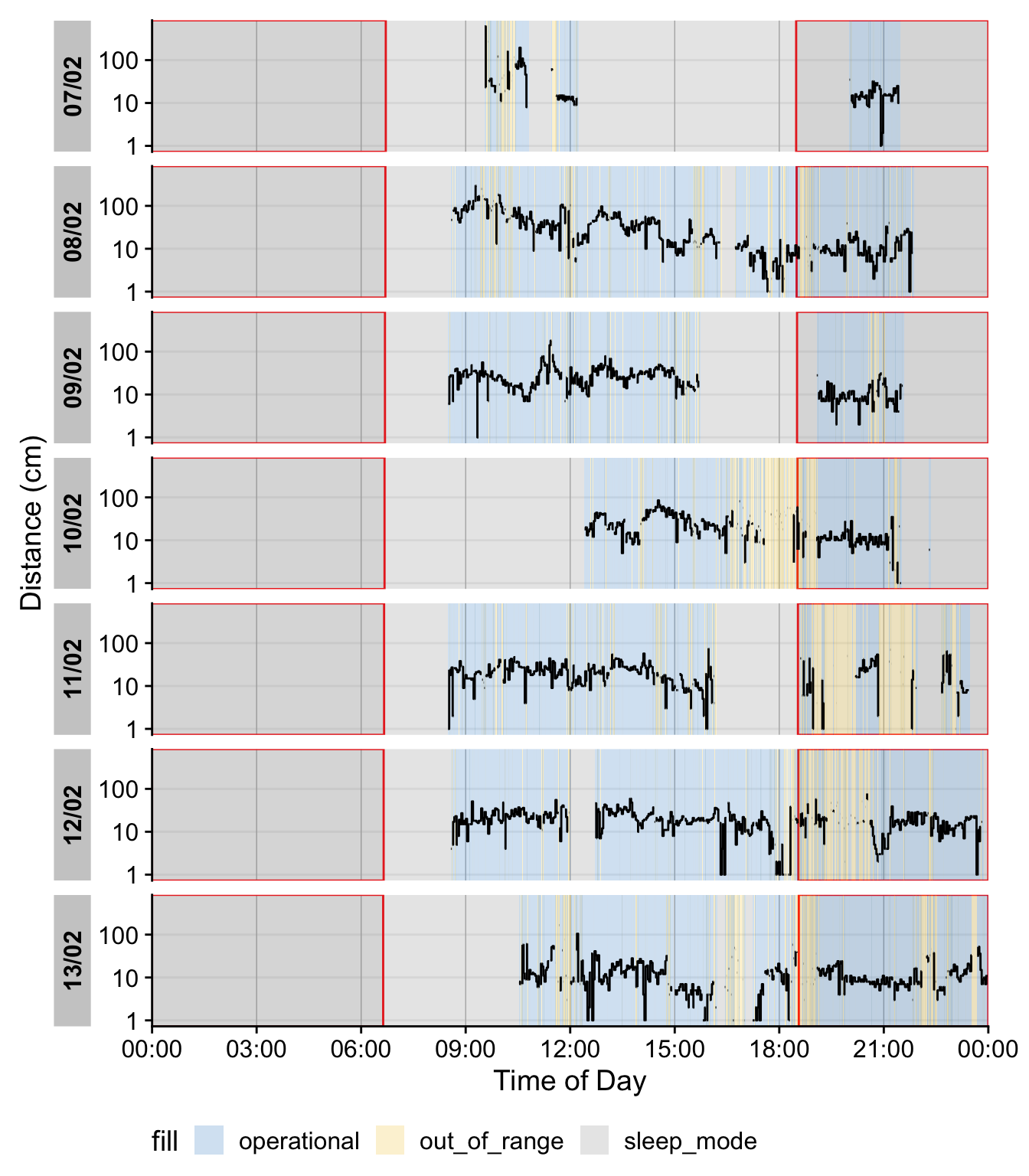

Distance measurements across days. Blue, grey and yellow-colored areas show sentinel states of the device. Blue indicates an operational status, grey sleep mode (not recording), and yellow an out of range measurement. Red boxed areas show nighttime from civil dusk until dawn, which are calculated based on the recording date and geographic coordinates
In this plot, blue segments indicate times when the Clouclip was operational (actively measuring), grey segments indicate the device in sleep mode (no recording, typically at night), and yellow segments indicate out-of-range distance readings. The red outlined regions show nighttime (from civil dusk to dawn) based on the given latitude/longitude and dates. As expected, most of the grey “sleep” periods align with night hours, and we see a few yellow spans when the user’s viewing distance exceeded the device’s range (e.g. presumably when no object was within 100 cm, such as when the user looked into the distance). At this stage, the Clouclip dataset dataCC is fully preprocessed: all timestamps are regular 5-second intervals, missing data are explicitly marked, extraneous partial days are removed, and sentinel codes are handled via the status columns. The data are ready for calculating daily distance and light exposure metrics (as done in the main tutorial’s Results).
VEET Data: Ambient Light (Illuminance) Processing
The VEET device (Sah, Narra, and Ostrin 2025) is a more complex logger that records multiple data modalities in one combined file. Its raw data file contains interleaved records for different sensor types, distinguished by a “modality” field. We focus first on the ambient light sensor modality (abbreviated ALS), which provides broad-spectrum illuminance readings (lux) and related information like sensor gains and flicker, recorded every 2 seconds. Later we will import the spectral sensor modality (PHO) for spectral irradiance data.
In the VEET’s export file, each line includes a timestamp and a modality code, followed by fields specific to that modality. Importantly, this means that the VEET export is not rectangular, i.e., tabular. This makes it challenging for many import functions that expect the equal number of columns in every row, which is not the case in this instance. For the ALS modality, the relevant columns include a high-resolution timestamp (in Unix epoch format), integration time, UV/VIS/IR sensor gain settings, raw UV/VIS/IR sensor counts, a flicker measurement, and the computed illuminance in lux. For example, the ALS data columns are named: time_stamp, integration_time, uvGain, visGain, irGain, uvValue, visValue, irValue, Flicker, and Lux.
For the PHO (spectral) modality, the columns include a timestamp, integration time, a general Gain factor, and nine sensor channel readings covering different wavelengths (with names like s415, s445, ..., s680, s940) as well as a Dark channel and two broadband channels ClearL and ClearR. In essence, the VEET’s spectral sensor captures light in several wavelength bands (from ~415 nm up to 940 nm, plus an infrared and two “clear” channels) rather than outputting a single lux value like the ambient light sensor does (PHO).
To import the VEET ambient light data, we again use the LightLogR import function, specifying the ALS modality. The raw VEET data in our example is provided as a zip file (01_VEET_L.csv.zip) containing the logged data for one week. We do the following:
In [10]:
# Import VEET Ambient Light Sensor (ALS) datapath <-"data/01_VEET_L.csv.zip"tz <-"US/Central"# assuming device clock was set to US Central, for consistencydataVEET <- import$VEET(path, tz = tz, modality ="ALS", manual.id ="VEET")
Multiple files in zip: reading '01_VEET_L.csv'
Warning: There was 1 warning in `dplyr::mutate()`.
ℹ In argument: `dplyr::across(...)`.
Caused by warning:
! NAs introduced by coercion
Successfully read in 304'193 observations across 1 Ids from 1 VEET-file(s).
Timezone set is US/Central.
The system timezone is Europe/Berlin. Please correct if necessary!
1 observations were dropped due to a missing or non-parseable Datetime value (e.g., non-valid timestamps during DST jumps).
First Observation: 2024-06-04 15:00:37
Last Observation: 2024-06-12 08:29:43
Timespan: 7.7 days
Observation intervals:
Id interval.time n pct
1 VEET 0s 1 0.00033%
2 VEET 1s 1957 0.64334%
3 VEET 2s 300147 98.67025%
4 VEET 3s 2074 0.68181%
5 VEET 4s 3 0.00099%
6 VEET 9s 5 0.00164%
7 VEET 10s 3 0.00099%
8 VEET 109s (~1.82 minutes) 1 0.00033%
9 VEET 59077s (~16.41 hours) 1 0.00033%

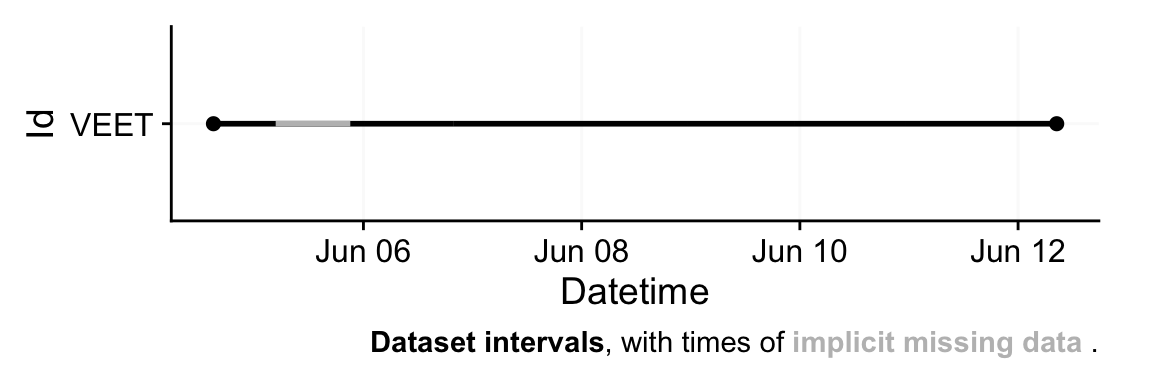

Overview plot of imported VEET data
Note
We get one warning as a single time stamp could not be parsed into a datetime - with ~300k observations, this is not an issue.
This call reads in only the lines corresponding to the ALS modality from the VEET file. The result dataVEET is a tibble3 with columns such as Datetime (parsed from the time_stamp epoch to POSIXct in US/Central time), Lux (illuminance in lux), Flicker, and the various sensor gains/values. Unneeded columns like the modality code or file name are also included but can be ignored or removed. After import, LightLogR again provides an overview of the data. We learn that the VEET light data, like the Clouclip, also exhibits irregularities and gaps. (The device nominally records every 2 seconds, but timing may drift or pause when not worn.)
To make the VEET light data comparable to the Clouclip’s and to simplify analysis, we choose to aggregate the VEET illuminance data to 5-second intervals. This slight downsampling will both reduce data volume and help align with the Clouclip’s timeline for any combined analysis. Before aggregation, we will also explicitly mark gaps in the VEET data so that missing intervals are not overlooked.
In [11]:
# Aggregate VEET light data to 5-second intervals and mark gapsdataVEET <- dataVEET |>aggregate_Datetime(unit ="5 seconds") |># resample to 5-sec bins (e.g. average Lux over 2-sec readings)gap_handler(full.days =TRUE) |># fill in implicit gaps with NA rowsadd_Date_col(group.by =TRUE) |># add Date column for daily groupingremove_partial_data(Lux, threshold.missing ="1 hour")
First, aggregate_Datetime(unit = "5 seconds") combines the high-frequency 2-second observations into 5-second slots. By default, this function will average numeric columns like Lux over each 5-second period (and handle counts or categorical appropriately). All of these data type handlers can be changed with the function call. The result is that dataVEET now has a reading every 5 seconds (or an NA if none were present in that window). Next, gap_handler(full.days = TRUE) inserts explicit NA entries for any 5-second timestamp that had no data within the continuous span of the recording. Then we add a Date column for grouping, and finally we remove days with more than 1 hour of missing data (using a more strict criterion as we did for Clouclip). According to the gap summary ((tbl-gaps2?)), this leaves six full days of VEET light data with good coverage, after dropping the very incomplete start/end days.
We can inspect the missing-data summary for the VEET illuminance data:
In [12]:
In [13]:
dataVEET |>gap_table(Lux, "Illuminance (lx)") |>cols_hide(contains("_n")) #remove the absolute number of data points
Summary of missing and observed data for the VEET device
Summary of available and missing data
Variable: Illuminance (lx)
Data
Missing
Regular
Irregular
Range
Interval
Gaps
Implicit
Explicit
Time
%
n1,2
Time
Time
N
ø
Time
%
Time
%
Time
%
Overall
5d 23h 57m 40s
100.0%3
0
6d
5
8
58s
2m 20s
0.0%3
0s
0.0%3
2m 20s
0.0%3
VEET - 2024-06-06
23h 58m 5s
99.9%
0
1d
5s
3
38s
1m 55s
0.1%
0s
0.0%
1m 55s
0.1%
VEET - 2024-06-07
1d
100.0%
0
1d
5s
0
0s
0s
0.0%
0s
0.0%
0s
0.0%
VEET - 2024-06-08
23h 59m 55s
100.0%
0
1d
5s
1
5s
5s
0.0%
0s
0.0%
5s
0.0%
VEET - 2024-06-09
23h 59m 50s
100.0%
0
1d
5s
2
5s
10s
0.0%
0s
0.0%
10s
0.0%
VEET - 2024-06-10
23h 59m 55s
100.0%
0
1d
5s
1
5s
5s
0.0%
0s
0.0%
5s
0.0%
VEET - 2024-06-11
23h 59m 55s
100.0%
0
1d
5s
1
5s
5s
0.0%
0s
0.0%
5s
0.0%
1 If n > 0: it is possible that the other summary statistics are affected, as they are calculated based on the most prominent interval.
2 Number of (missing or actual) observations
3 Based on times, not necessarily number of observations
(tbl-gaps2?) shows, for each retained day, the total recorded duration and the duration of gaps. The VEET device, like the Clouclip, was not worn continuously 24 hours per day, so there are nightly gaps of wear time (when the device was likely off the participant), but not of recordings. After our preprocessing, any implicit gaps are represented as explicit missing intervals. The VEET’s time sampling was originally more frequent, but by aggregating to 5 s we have ensured a uniform timeline akin to the Clouclip’s.
At this point, the dataVEET object (for illuminance) is cleaned and ready for computing light exposure metrics. For example, one could calculate daily mean illuminance or the duration spent above certain light thresholds (e.g. “outdoor light exposure” defined as >1000 lx) using this dataset. Indeed, basic summary tables in the main tutorial illustrate the highly skewed nature of light exposure data and the calculation of outdoor light metrics. We will not repeat those metric calculations here in the supplement, as our focus is on data preprocessing; however, having a cleaned, gap-marked time series is crucial for those metrics to be accurate.
VEET Data: Spectral Data Processing
Import
In addition to broad-band illuminance, the VEET provides spectral sensor data through its PHO modality. Unlike illuminance, the spectral data are not directly given as directly interpretable radiometric metrics but rather as raw sensor counts across multiple wavelength channels, which require conversion to reconstruct a spectral power distribution. In our analysis, spectral data allow us to compute metrics like the relative contribution of short-wavelength (blue) light versus long-wavelength light in the participant’s environment. Processing this spectral data involves several special steps.
First, we import the spectral modality from the same VEET file. (The data were recorded simultaneously with the ALS data, but to get spectral readings we need to extract the lines marked as PHO.) We will store the spectral dataset in a separate object dataVEET2 so as not to overwrite the dataVEET illuminance data in our R session:
Successfully read in 304'197 observations across 1 Ids from 1 VEET-file(s).
Timezone set is US/Central.
The system timezone is Europe/Berlin. Please correct if necessary!
First Observation: 2024-06-04 15:00:36
Last Observation: 2024-06-12 08:29:43
Timespan: 7.7 days
Observation intervals:
Id interval.time n pct
1 VEET 0s 1 0.00033%
2 VEET 1s 1753 0.57627%
3 VEET 2s 300556 98.80340%
4 VEET 3s 1873 0.61572%
5 VEET 4s 3 0.00099%
6 VEET 6s 1 0.00033%
7 VEET 7s 2 0.00066%
8 VEET 9s 5 0.00164%
9 VEET 109s (~1.82 minutes) 1 0.00033%
10 VEET 59077s (~16.41 hours) 1 0.00033%
Overview plot of imported VEET data
After import, dataVEET2 contains columns for the timestamp (Datetime), Gain (the sensor gain setting), and the nine spectral sensor channels plus the two clear channels and dark channel (as described earlier). These appear as numeric columns named s415, s445, ..., s940, Dark, ClearL, ClearR. The spectral sensor was logging at the same 2-second rate. Because this dataset is even denser and more high-dimensional, we will aggregate it to a 5-minute interval for computational efficiency. The assumption is that spectral composition does not need to be examined at every 2-second instant for our purposes, and 5-minute averages can capture the general trends while drastically reducing data size and downstream computational costs.
In [15]:
# Aggregate spectral data to 5-minute intervals and mark gapsdataVEET2 <- dataVEET2 |>aggregate_Datetime(unit ="5 mins") |># aggregate to 5-minute binsgap_handler(full.days =TRUE) |># explicit NA for any gaps in betweenadd_Date_col(group.by =TRUE) |>remove_partial_data(ClearR, threshold.missing ="1 hour")
We aggregate over 5-minute windows; within each 5-minute bin, multiple spectral readings (if present) are combined (averaged). We use one of the channels (here ClearR) as the reference variable for remove_partial_data to drop incomplete days (the choice of channel is arbitrary as all channels share the same level of completeness). After this, dataVEET2 too covers the same six full days as dataVEET and dataCC.
It is informative to look at a snippet of the imported spectral data before further processing. (tbl-PHO?) shows the first three rows of dataVEET2 after import (before calibration), with some technical columns omitted for brevity:
Overview of the spectral sensor import from the VEET device (first 3 observations). Each row corresponds to a 5-minute timestamp (Datetime) and shows the raw sensor readings for the spectral channels (s415–s940, Dark, ClearL, ClearR). All values are in arbitrary sensor units (counts). Gain values and integration_time are also relevant for each interval, depending on the downstream computation.
Datetime
integration_time
Gain
s415
s445
s480
s515
s555
s590
s630
s680
s940
Dark
ClearL
ClearR
VEET - 2024-06-06
2024-06-06
50
512
0.14
4.77
5.89
12.95
27.06
41.85
54.49
33.61
14.67
0.00
92.84
95.39
2024-06-06 00:05:00
50
512
0.14
4.69
5.87
12.95
26.82
41.33
54.07
33.25
14.69
0.00
91.93
94.81
2024-06-06 00:10:00
50
512
0.14
4.73
5.94
12.98
27.39
42.43
55.07
33.80
15.15
0.00
93.63
96.57
Spectral calibration
Now we proceed with spectral calibration. The VEET’s spectral sensor counts need to be converted to physical units (spectral irradiance) via a calibration matrix provided by the manufacturer. For this example, we assume we have a calibration matrix that maps all the channel readings to an estimated spectral power distribution (SPD). The LightLogR package provides a function spectral_reconstruction() to perform this conversion. However, before applying it, we must ensure the sensor counts are in a normalized form. In our raw data, each observation comes with a Gain setting that indicates how the sensor’s sensitivity was adjusted; we need to divide the raw counts by the gain to get normalized counts. LightLogR offers normalize_counts() for this purpose.
In [18]:
count.columns <-c("s415", "s445", "s480", "s515", "s555", "s590", "s630", "s680", "s940", "Dark", "ClearL", "ClearR") #column names#normalize datadataVEET2 <- dataVEET2 |>normalize_counts( #function to normalize countsgain.columns =rep("Gain", 12), #all sensor channels share the gain valuecount.columns = count.columns, #senso channels to normalize gain.ratio.tables$TSL2585 #gain ratio channel for TSL2585 sensor )
In this call, we specified gain.columns = rep("Gain", 12) because we have 12 sensor columns that all use the same gain factor column (Gain). This step will add new columns (with a suffix, e.g. .normalized) for each spectral channel representing the count normalized by the gain. Next, we handle the two Clear channels. The VEET has a Clear sensor on both the left and right sides (ClearL and ClearR). For our analysis, we have to combine them by averaging, to get a single “Clear” channel:
In [19]:
# Combine left and right clear channels into one and remove original channelsdataVEET2 <- dataVEET2 |>mutate(Clear.normalized = (ClearL.normalized + ClearR.normalized) /2) |># average of left and right clearselect(-c(s415:ClearR)) |># drop original raw count columnsrename_with(~str_remove(.x, ".normalized")) # remove the ".normalized" suffix in names
After this, dataVEET2 contains the normalized sensor readings for s415, s445, ..., s940, Dark, Clear (note: now a single Clear channel) for each 5-minute time point. We have dropped the raw count columns, and removed the “.normalized” suffix for clarity. The dataset is now ready for spectral reconstruction.
Spectral reconstruction
For spectral reconstruction, we require a calibration matrix that corresponds to the VEET’s sensor channels. This matrix would typically be obtained from the device manufacturer or a calibration procedure. It defines how each channel’s count relates to intensity at various wavelengths. For demonstration, the calibration matrix was provided by the manufacturer and is specific to the make and model. It should not be used for research purposes without confirming its accuracy with the manufacturer.
For demonstration, assume we have loaded a calibration matrix calib_mtx(with dimensions matching 10 channels by N wavelengths of interest). We can then reconstruct the spectral power distribution for each time point:
In [21]:
# Reconstruct spectral power distribution (SPD) for each observationdataVEET2 <- dataVEET2 |>mutate(Spectrum =spectral_reconstruction(pick(s415:s940, Dark, Clear), # pick the normalized sensor columnscalibration_matrix = calib_mtx, format ="long"# return a long-form list column (wavelength, intensity) ))
Here, we use format = "long" so that the result for each observation is a list-columnSpectrum, where each entry is a tibble4 containing two columns: wavelength and irradiance (one row per wavelength in the calibration matrix). In other words, each row of dataVEET2 now holds a full reconstructed spectrum in the Spectrum column. The long format is convenient for further calculations and plotting. (An alternative format = "wide" would add each wavelength as a separate column, but that is less practical when there are many wavelengths.)
At this stage, the dataVEET2 dataset has been processed to yield time-series of spectral power distributions. We can use these to compute biologically relevant light metrics. For instance, one possible metric is the proportion of power in short wavelengths versus long wavelengths. In the main analysis, we defined short-wavelength (blue light) content as the integrated intensity in the 400–500 nm range, and long-wavelength content as the integrated intensity in a longer range (e.g. 600–700 nm), then computed the short-to-long ratio (“sl ratio”). Calculating these metrics is the first step of spectrum analysis in the main tutorial.
dataVEET2 |>
select(Id, Date, Datetime, Spectrum) |> # focus on ID, date, time, and spectrum
mutate(
short = Spectrum |> map_dbl(spectral_integration, wavelength.range = c(400, 500)),
long = Spectrum |> map_dbl(spectral_integration, wavelength.range = c(600, 700)),
`sl ratio` = short / long # compute short-to-long ratio
)
(The cutoff of 500 nm here is hypothetical for demonstration; actual definitions might vary.) We would then have columns short, long, and sl_ratio for each observation, which could be averaged per day or analyzed further. The cleaned spectral data in dataVEET2 makes it straightforward to calculate such metrics or apply spectral weighting functions (for melatonin suppression, circadian stimulus, etc., if one has the spectral sensitivity curves).
With the VEET spectral preprocessing complete, we emphasize that these steps – normaliziing by gain, applying calibration, and perhaps simplifying channels – are device-specific requirements. They ensure that the raw sensor counts are translated into meaningful physical measures (like spectral irradiance). Researchers using other spectral devices would follow a similar procedure, adjusting for their device’s particulars (some may output spectra directly, whereas others, like VEET, require reconstruction.
Note
Some devices may output normalized counts instead of raw counts. For example, the ActLumus device outputs normalized counts, while the VEET device records raw counts and the gain. Manufacturers will be able to speficy exact outputs for a given model and software version.
Saving the Cleaned Data
After executing all the above steps, we have three cleaned data frames in our R session:
dataCC – the processed Clouclip dataset (5-second intervals, with distance and lux, including NA for gaps and sentinel statuses).
dataVEET – the processed VEET ambient light dataset (5-second intervals, illuminance in lux, with gaps filled).
dataVEET2 – the processed VEET spectral dataset (5-minute intervals, each entry containing a spectrum or derived spectral metrics).
For convenience and future reproducibility, we will save these combined results to a single R data file. Storing all cleaned data together ensures that any analysis can reload the exact same data state without re-running the import and cleaning (which can be time-consuming for large raw files).
In [22]:
# Create directory for cleaned data if it doesn't existif (!dir.exists("data/cleaned")) dir.create("data/cleaned", recursive =TRUE)# Save all cleaned datasets into one .RData filesave(dataCC, dataVEET, dataVEET2,file ="data/cleaned/data.RData")
The above code creates (if necessary) a folder data/cleaned/ and saves a single RData file (data.RData) containing the three objects. To retrieve them later, one can use <- load("data/cleaned/data.RData"), which will return the objects into the environment. This single-file approach simplifies sharing and keeps the cleaned data together.
In summary, this supplement has walked through the full preprocessing pipeline for two example devices. We began by describing the raw data format for each device and then demonstrated how to import the data with correct time zone settings. We handled device-specific quirks like sentinel codes (for Clouclip) and multiple modalities with gain normalization (for VEET). We showed how to detect and address irregular sampling, how to explicitly mark missing data gaps to avoid analytic pitfalls, and how to reduce data granularity via rounding or aggregation when appropriate. Throughout, we used functions from LightLogR in a tidyverse workflow, aiming to make the steps clear and modular. By saving the final cleaned datasets, we set the stage for the computation of visual experience metrics such as working distance, time in bright light, spectral composition ratios, as presented in the main tutorial. We hope this detailed tutorial empowers researchers to adopt similar pipelines for their own data, facilitating reproducible and accurate analyses of visual experience.
References
Sah, Raman Prasad, Pavan Kalyan Narra, and Lisa A. Ostrin. 2025. “A Novel Wearable Sensor for Objective Measurement of Distance and Illumination.”Ophthalmic and Physiological Optics 00 (n/a): 1–13. https://doi.org/https://doi.org/10.1111/opo.13523.
Wen, Longbo, Yingpin Cao, Qian Cheng, Xiaoning Li, Lun Pan, Lei Li, HaoGang Zhu, Weizhong Lan, and Zhikuan Yang. 2020. “Objectively Measured Near Work, Outdoor Exposure and Myopia in Children.”British Journal of Ophthalmology 104 (11): 1542–47. https://doi.org/10.1136/bjophthalmol-2019-315258.
Wen, Longbo, Qian Cheng, Yingpin Cao, Xiaoning Li, Lun Pan, Lei Li, Haogang Zhu, Ian Mogran, Weizhong Lan, and Zhikuan Yang. 2021. “The Clouclip, a Wearable Device for Measuring Near-Work and Outdoor Time: Validation and Comparison of Objective Measures with Questionnaire Estimates.”Acta Ophthalmologica 99 (7): e1222–35. https://doi.org/https://doi.org/10.1111/aos.14785.
Zauner, J., S. Hartmeyer, and M. Spitschan. 2025. “LightLogR: Reproducible Analysis of Personal Light Exposure Data.” Journal Article. J Open Source Softw 10 (107): 7601. https://doi.org/10.21105/joss.07601.
A sentinel value is a special placeholder value used in data recording to signal a particular condition. It does not represent a valid measured quantity but rather acts as a marker (for example, “device off” or “value out of range”).↩︎
tibble are data.tables with tweaked behavior, ideal for a tidy analysis workflow. For more information, visit the documentation page for tibbles↩︎
tibble are data.tables with tweaked behavior, ideal for a tidy analysis workflow. For more information, visit the documentation page for tibbles↩︎
tibble are data.tables with tweaked behavior, ideal for a tidy analysis workflow. For more information, visit the documentation page for tibbles↩︎
